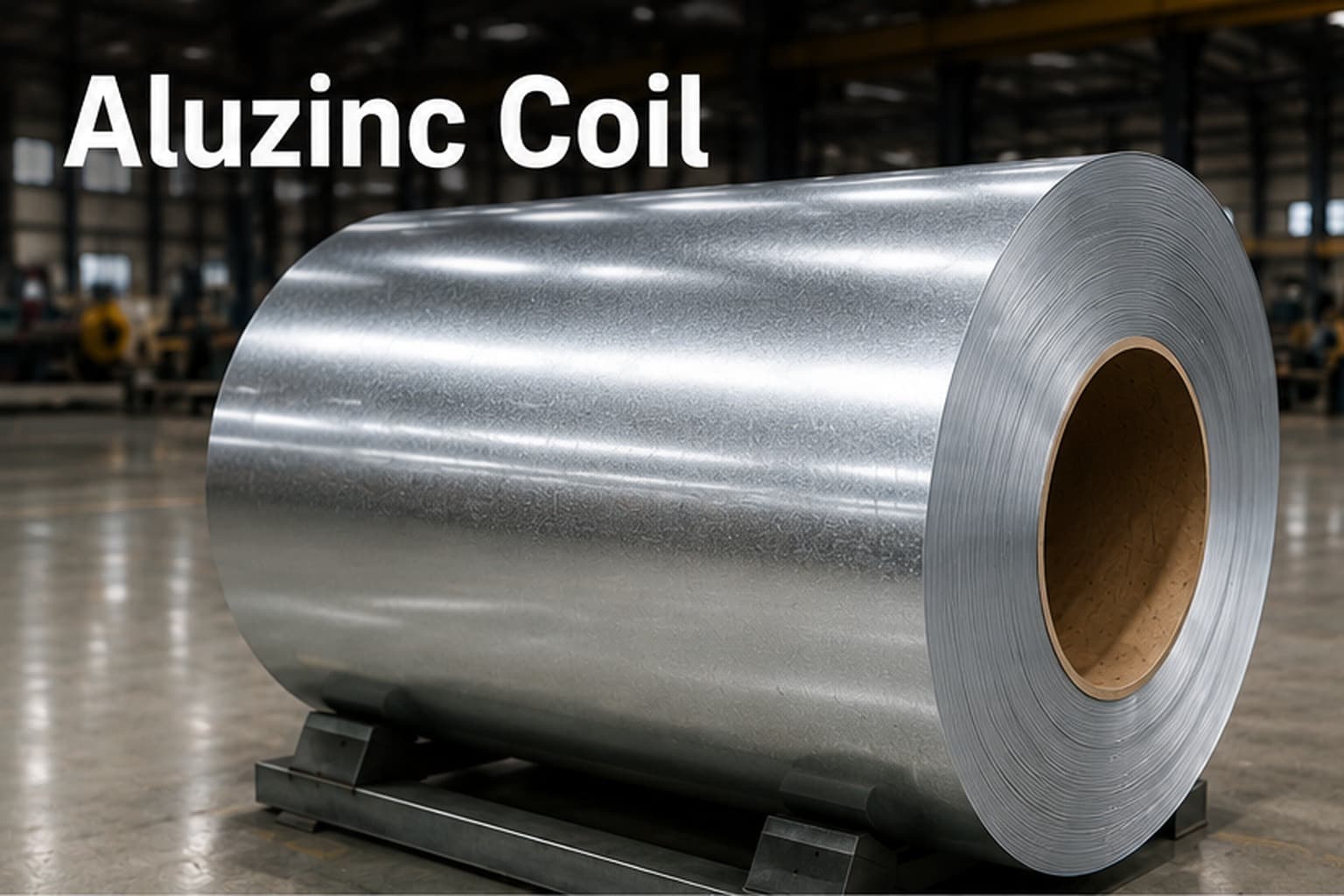

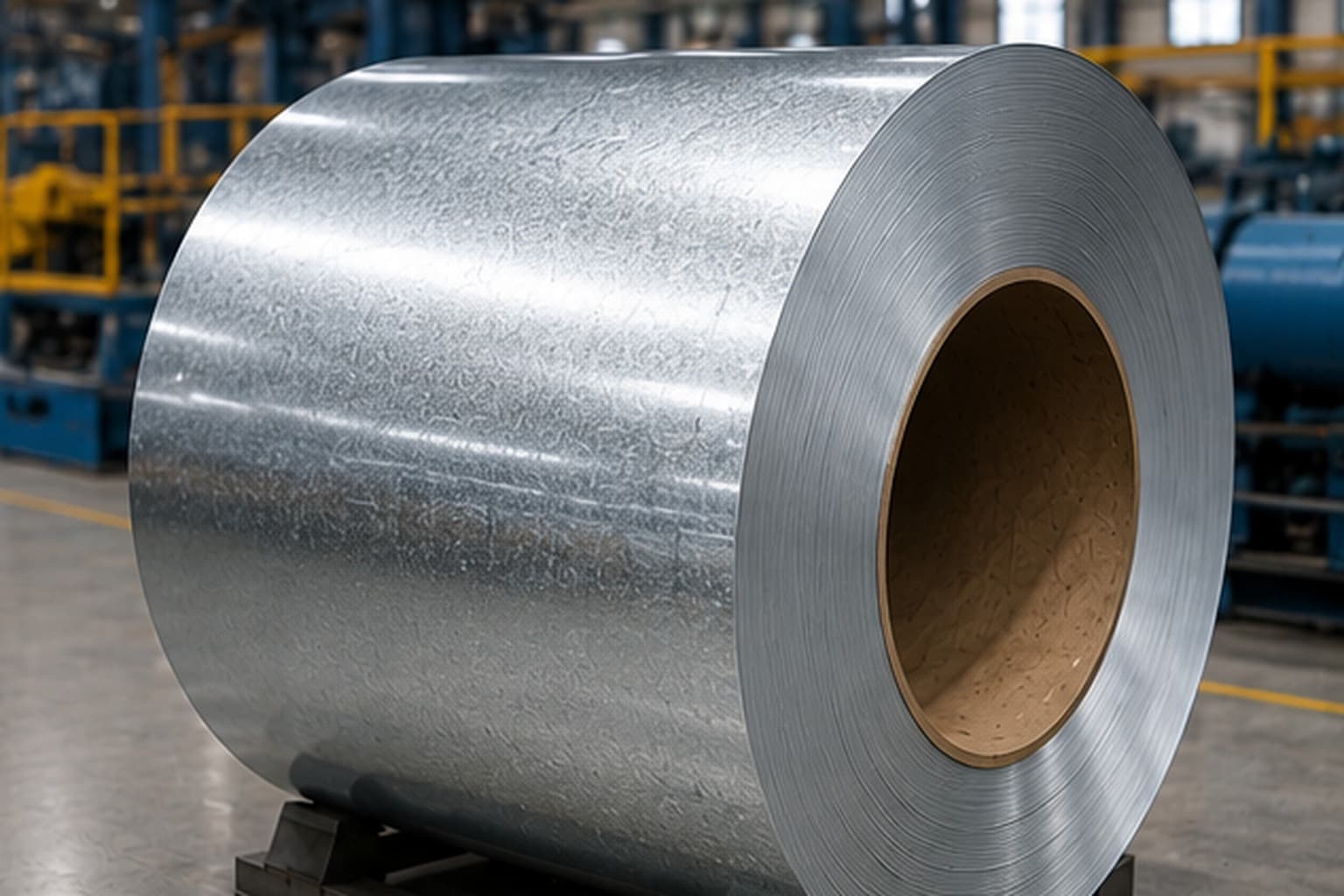

Aluzinc Coils & Sheets Supplier in UAE
SRK Steel supplies high-quality Aluzinc coils and sheets, also known as Galvalume steel, for roofing, cladding, PEB structures, HVAC systems, industrial buildings, ducting, ceiling systems and general fabrication applications across the UAE and GCC.
Aluzinc is a continuously hot-dip coated steel product with an aluminum-zinc alloy coating designed to provide a combination of corrosion resistance, heat resistance, durability and surface performance. ASTM A792/A792M covers 55% aluminum-zinc alloy-coated steel sheet manufactured in coils and cut lengths.

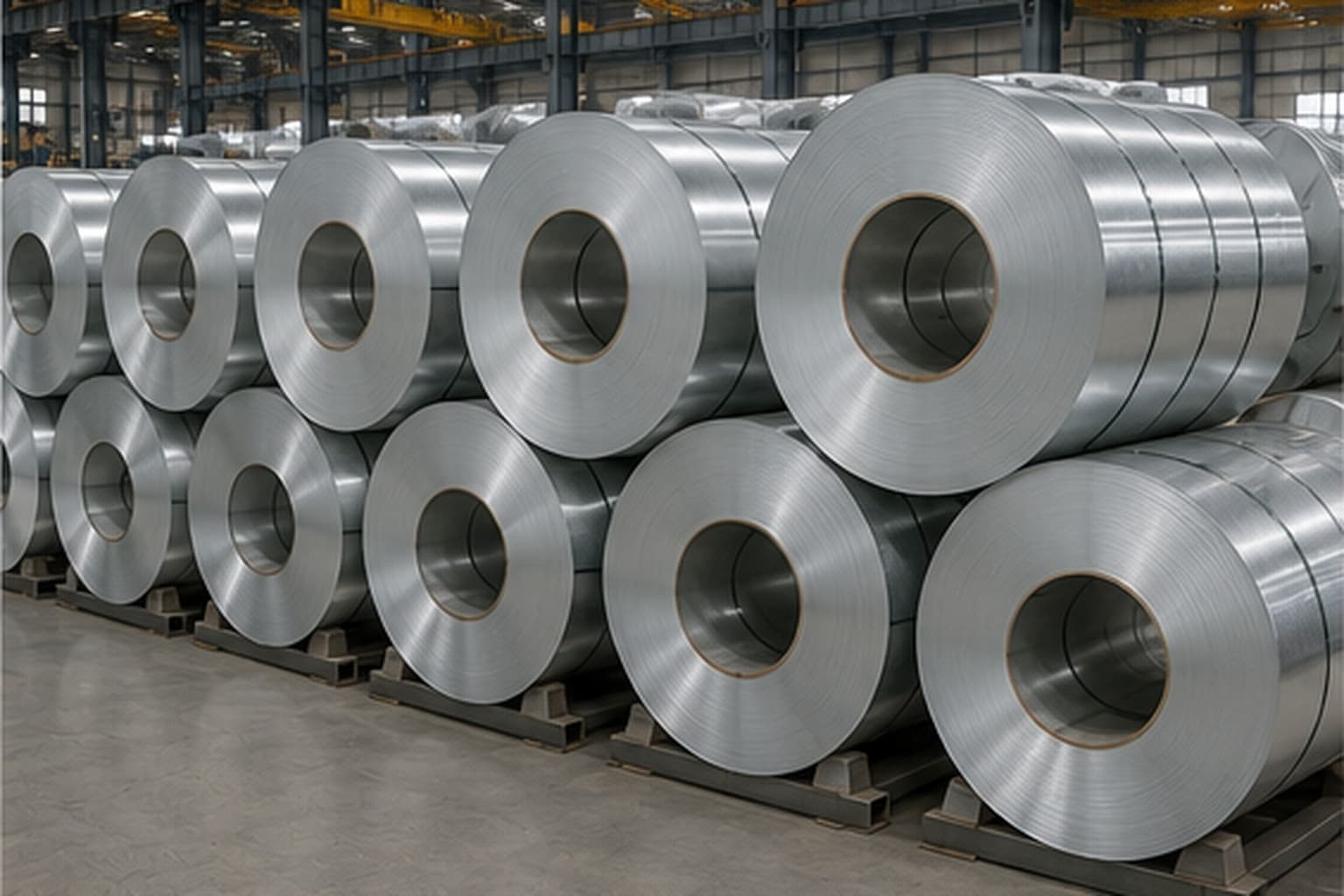

SRK Steel supplies Aluzinc steel coils, cut-to-length sheets and slit coils in different thicknesses, widths, coating masses, steel grades, surface finishes and treatment options according to project and customer requirements.
Aluzinc products supplied by SRK Steel are suitable for demanding applications in the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain and other GCC markets, where material durability and environmental exposure are important specification considerations.
What is Aluzinc Steel?
Aluzinc steel is carbon steel coated through a continuous hot-dip process with an aluminum-zinc alloy coating. It is commonly known in the international market as Galvalume steel.
The aluminum-zinc coating provides a protective metallic layer over the steel substrate. ASTM A792/A792M specifically covers steel sheet with a 55% aluminum-zinc alloy coating and identifies applications requiring corrosion resistance, heat resistance, or both.
Aluzinc coils are widely used for:
- Roofing sheets
- Standing seam roofing
- Wall cladding
- Industrial building envelopes
- Pre-engineered buildings (PEB)
- Sandwich panels
- HVAC ducting
- Air-conditioning equipment
- Ceiling systems
- Garage and warehouse structures
- Agricultural buildings
- Industrial fabrication
- Roll-forming applications
- General engineering applications
Aluzinc Coil & Sheet Supplier in UAE
SRK Steel supplies Aluzinc steel coils and sheets in Dubai and across the UAE, supporting contractors, manufacturers, fabricators, roofing companies, PEB companies, HVAC manufacturers, trading companies and industrial customers.
Our supply program can include:
- Aluzinc coils
- Aluzinc sheets
- Cut-to-length Aluzinc sheets
- Slit Aluzinc coils
- Roll-forming grade Aluzinc
- Roofing-grade Aluzinc
- Structural-grade Aluzinc
- Commercial-quality Aluzinc
- Drawing-quality Aluzinc
- High-strength Aluzinc
- Custom sizes and specifications
Material availability, dimensions, coating mass and grade can be selected according to the customer's application and purchase specification.
Aluzinc Steel Coil Specifications
SRK Steel can supply Aluzinc coils and sheets in a range of thicknesses and widths according to source availability, available processing capability and customer requirements.
| Parameter | Aluzinc Coil | Cut-to-Length Sheet | Slit Coil |
|---|---|---|---|
| Thickness | 0.12–3.80 mm* | 0.30–6.00 mm* | 0.18–3.80 mm* |
| Width | 650–1350 mm* | 350–2000 mm* | 35–1550 mm* |
| Coil ID | 508 / 610 mm | — | 508 / 610 mm |
| Maximum Coil OD | Up to 1850 mm* | — | Up to 1850 mm* |
| Maximum Coil Weight | Up to 15 MT* | — | Up to 10 MT* |
| Coating Mass | 30–150 g/m²* | ||
| Sheet Length | — | Up to 4000 mm* | — |
*Subject to source availability, available processing capability, grade, thickness, width and customer specification. Please confirm current availability with SRK Steel before ordering.
Aluzinc Standards & Material Grades
SRK Steel can supply Aluzinc products according to internationally recognized specifications, subject to order requirements and availability.
ASTM A792/A792M
ASTM A792/A792M is the principal ASTM specification for 55% aluminum-zinc alloy-coated steel sheet produced by the hot-dip process. The current ASTM listing is A792/A792M-25a.
Depending on the required application, material may be specified in different steel designations and grades, including:
- Commercial Steel
- Forming Steel
- Drawing Steel
- High-Temperature Steel
- Structural Steel
The standard includes requirements relating to chemical composition, mechanical properties, coating mass and coating bend performance.
EN 10346
For European requirements, continuously hot-dip coated steel products may be specified under EN 10346, with grades such as:
- DX51D
- DX52D
- DX53D
- S220GD
- S250GD
- S280GD
- S320GD
- S350GD
- S550GD
JIS G3321
For projects requiring Japanese Industrial Standards, Aluzinc/Galvalume products may be specified according to JIS G3321, including commonly referenced grades such as:
- SGLCC
- SGLCD
- SGLC
Material grade and standard should always be confirmed against the project's approved material specification and purchase order.
Comparable Aluzinc International Grades (Legacy Reference Table)
| Classification | ASTM A792/A792M-10 (2015) | EN 10346:2015 | JIS G 3321:2010 |
|---|---|---|---|
| Commercial Quality | CS | DX51D | SGLCC |
| Lock Forming Quality | CS | DX51D | SGLCC |
| Drawing Quality | FS | DX52D | SGLCD |
| Deep Drawing Quality | DS | DX53D | SGLCD |
| Structural Quality | GRADE 230-550 | S220-S550 | SGL 400-570 |
Note: This comparison table references earlier editions shown in the column headings. Grade equivalence should be verified against the applicable project specification, the required standard edition and the material certificate rather than assumed solely from grade names.
Aluzinc Coating Options
SRK Steel can supply Aluzinc products with different coating masses according to the required specification.
Typical coating requirements may include:
- AZ30
- AZ50
- AZ70
- AZ100
- AZ120
- AZ150
The exact coating designation should be confirmed according to the applicable standard and customer requirement.
AZ coating mass refers to the total coating mass on both sides, unless otherwise specified by the applicable standard.
For demanding roofing, cladding and industrial applications, the correct combination of steel grade, substrate thickness, coating mass, surface treatment and forming requirements should be selected based on the intended service environment.
Aluzinc Surface Finishes
Depending on specification and availability, Aluzinc steel can be supplied with different surface finishes, including:

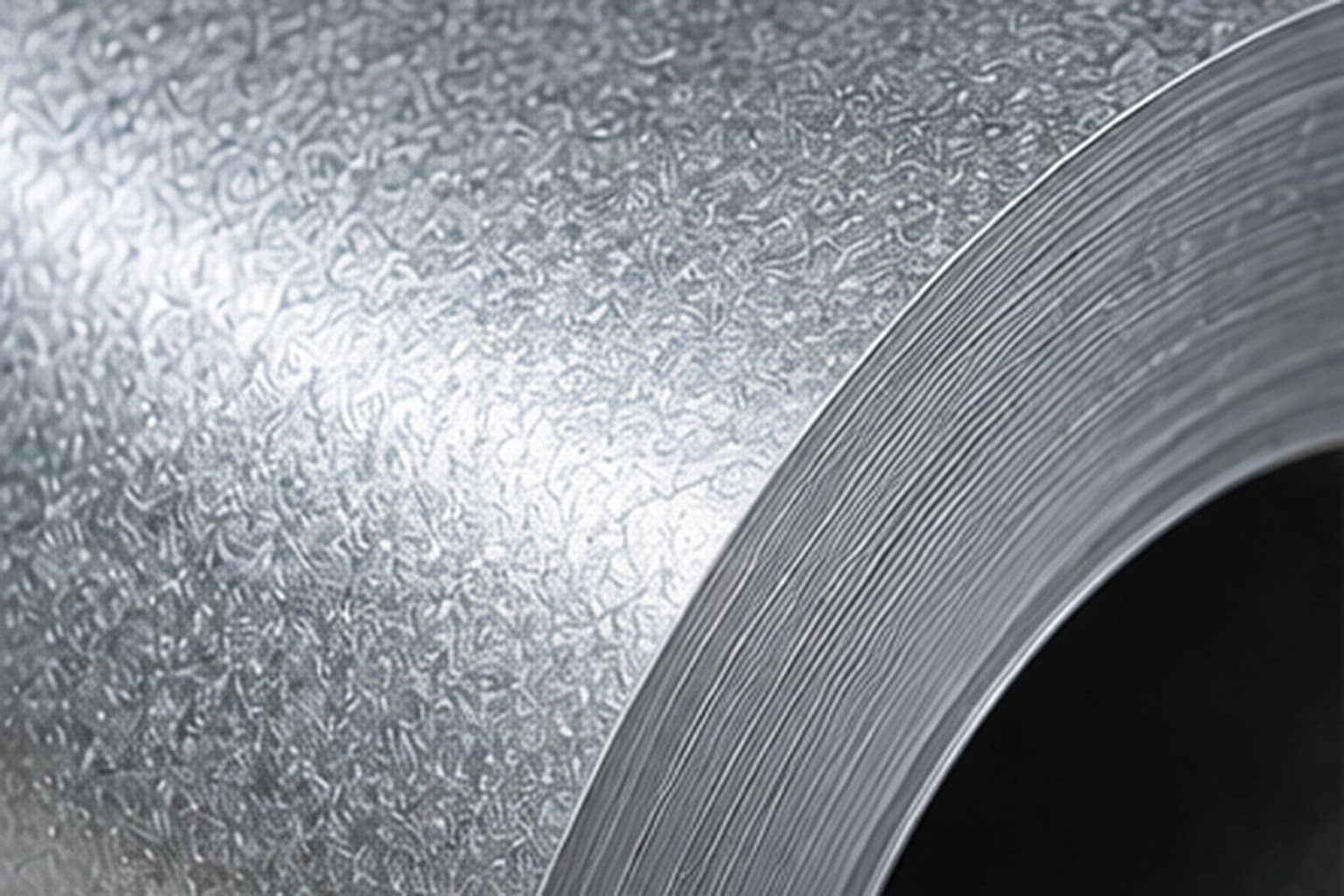

Regular Spangle
A visible metallic crystalline pattern formed during the solidification of the coating.
Minimized Spangle
A more uniform surface appearance with reduced visible spangle.
Suppressed Spangle
A controlled surface appearance designed for applications where a more uniform finish is preferred.
Surface appearance requirements should be confirmed before ordering, particularly where Aluzinc is intended for exposed architectural or building applications.
Aluzinc Surface Treatment Options
SRK Steel can supply Aluzinc products with different surface-treatment requirements, subject to source and processing availability.
Options may include:
- Chromate passivated
- Non-chromate passivated
- Oiled
- Non-oiled
- Anti-fingerprint
- Non-anti-fingerprint
- No additional treatment
The appropriate treatment depends on whether the material will be stored, roll-formed, painted, laminated, fabricated or used in an exposed application.
Aluzinc Coil Applications in the GCC
Aluzinc is widely used across construction, manufacturing and industrial applications where coated steel is required.

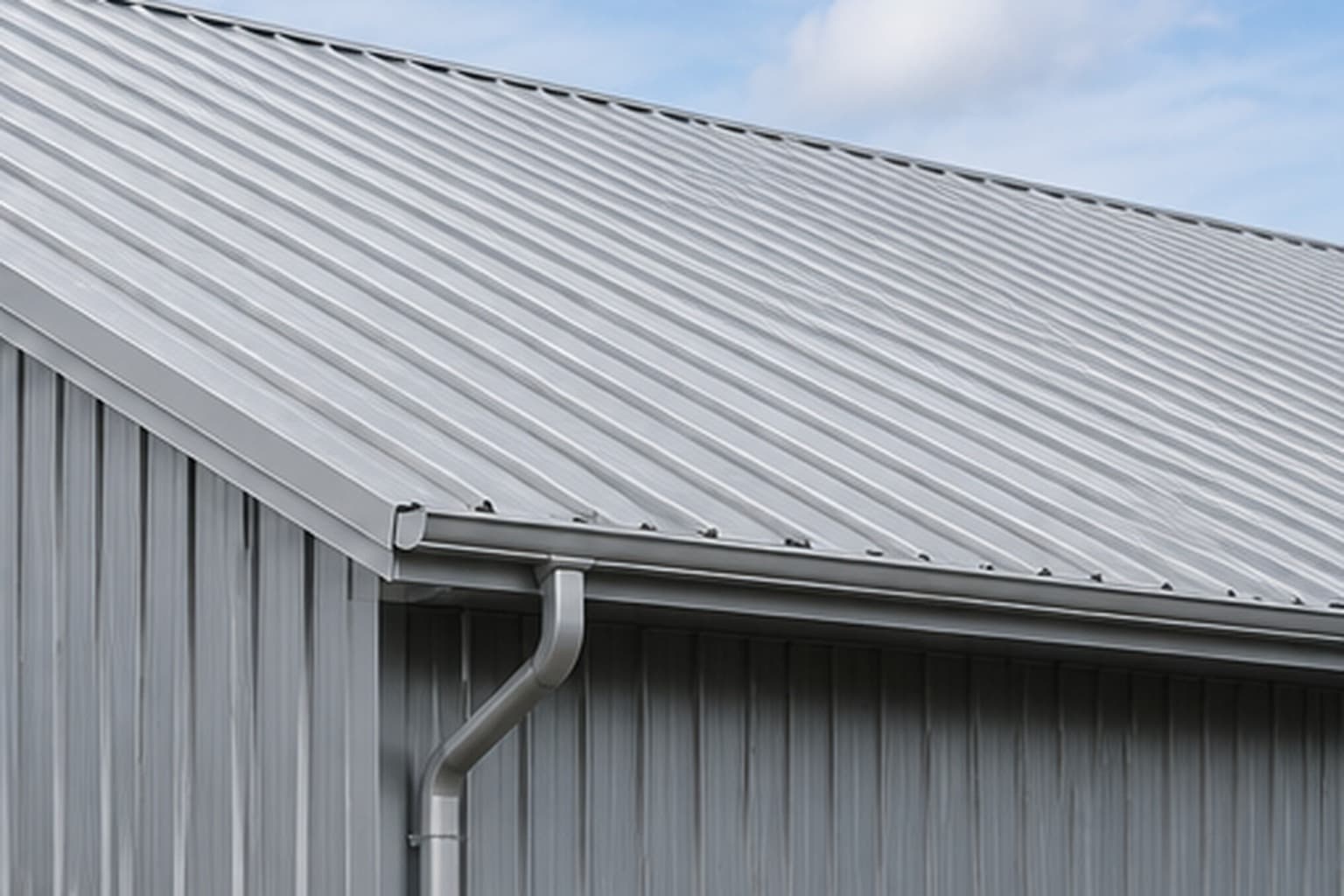

Roofing & Roofing Systems
Aluzinc coils are used for manufacturing:
- Corrugated roofing sheets
- Trapezoidal roofing sheets
- Standing seam roofing
- Industrial roofing
- Warehouse roofing
- Commercial building roofing
- Agricultural roofing
Wall Cladding
Aluzinc is suitable for wall cladding and building-envelope applications where a durable metallic-coated steel substrate is required.
Pre-Engineered Buildings
Aluzinc steel can be used in PEB-related applications including roofing, cladding and roll-formed components.
Sandwich Panels
Aluzinc coated steel is widely used as the outer and inner skin of insulated sandwich panels, including systems using:
- PUR insulation
- PIR insulation
- Rockwool insulation
The final specification should be selected according to the panel design, environment and applicable project requirements.
HVAC & Ducting
Aluzinc steel can be used for selected HVAC and ventilation applications, including:
- Air-conditioning ducting
- Ventilation systems
- HVAC equipment
- Industrial ducting
- Fabricated ventilation components
Industrial & Manufacturing Applications
Other applications include:
- Industrial enclosures
- Electrical cabinets
- Fabricated components
- Machinery covers
- Agricultural equipment
- Storage systems
- General sheet-metal fabrication
Why Choose Aluzinc Steel?
Aluzinc combines a steel substrate with an aluminum-zinc metallic coating to provide a useful balance of strength, corrosion resistance, surface durability and heat resistance.
Corrosion Resistance
The aluminum-zinc coating provides protective performance for applications exposed to atmospheric conditions.
Heat Resistance
Aluminum-zinc coated steel is suitable for applications where improved heat resistance is required compared with conventional zinc-coated products, subject to the specific service conditions and product specification.
Long-Term Building Performance
Aluzinc is commonly selected for roofing, cladding and building-envelope applications where long service life and reduced maintenance are important design considerations.
Excellent for Roll Forming
Appropriate Aluzinc grades can be selected for roll-forming and profiling operations used to manufacture roofing and cladding products.
Attractive Metallic Finish
The characteristic Aluzinc surface provides a bright metallic appearance suitable for many construction and industrial applications.
Aluzinc vs Galvanized Steel
Aluzinc and galvanized steel are both metallic-coated steel products, but their coating systems are different.
| Feature | Aluzinc Steel | Galvanized Steel |
|---|---|---|
| Main coating | Aluminum-zinc alloy | Zinc |
| Common specification | ASTM A792/A792M | ASTM A653/A653M |
| Common use | Roofing, cladding, PEB, panels | Construction, fabrication, general applications |
| Coating system | Aluminum-zinc alloy | Zinc |
| Heat performance | Suitable for applications requiring heat resistance, subject to specification | Application dependent |
| Surface | Metallic Al-Zn appearance | Zinc/spangle appearance |
The correct product depends on the application, environment, fabrication method, design requirements and project specification.
Aluzinc for UAE & GCC Climate
The UAE and wider GCC region present demanding environmental conditions, including high temperatures, strong solar exposure, dust and, in coastal locations, salt-laden atmospheric conditions.
For this reason, selecting the correct coated steel specification is important.
When purchasing Aluzinc for GCC projects, customers should consider:
- Steel substrate grade
- Material thickness
- Coating mass
- Surface treatment
- Forming requirements
- Installation environment
- Indoor or outdoor exposure
- Coastal or inland location
- Painting or coating requirements
- Storage conditions
- Fabrication process
SRK Steel can assist customers in selecting a suitable Aluzinc specification according to the intended application, project requirements and available supply options.
Aluzinc Coil Supply Across the GCC
SRK Steel serves customers throughout the United Arab Emirates and GCC markets.
We can support supply requirements for:
Dubai
Abu Dhabi
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Umm Al Quwain
Saudi Arabia
Qatar
Oman
Kuwait
Bahrain
For larger projects, contractors, manufacturers and distributors, SRK Steel can discuss bulk coil requirements, customized dimensions, delivery schedules and technical documentation.
Aluzinc Coil Cutting & Slitting
In addition to standard Aluzinc coils, SRK Steel can support customised processing requirements, subject to available processing capability, including:
Cut-to-Length
Aluzinc coils can be processed into sheets according to the required lengths, subject to equipment, source and specification limitations.
Slitting
Aluzinc coils can be slit into narrower widths for roll forming, fabrication and downstream manufacturing, subject to available processing capability.
Customized requirements can include:
- Coil width
- Sheet length
- Slit width
- Coil weight
- Inner diameter
- Outer diameter
- Packaging
- Surface treatment
- Grade
- Coating mass
Customers should provide their required dimensions and technical specification when requesting a quotation.
Aluzinc Quality Control & Documentation
For project and industrial requirements, documentation can be provided according to the agreed supply specification.
Depending on the order, documentation may include:
- Material Test Certificate (MTC)
- Mill Test Certificate
- Chemical composition
- Mechanical properties
- Coating mass information
- Dimensional inspection
- Thickness verification
- Width verification
- Surface inspection
- Coil identification
- Packing list
- Certificate of Origin, where applicable
Documentation requirements should be agreed before order confirmation.
Aluzinc Coil Packaging & Delivery
Proper packaging is important during transportation and storage to help protect Aluzinc coils and sheets from mechanical damage and moisture exposure.
SRK Steel can arrange packaging according to shipment, storage and customer requirements.
For GCC deliveries, customers should provide:
- Required quantity
- Coil or sheet requirement
- Thickness
- Width
- Length, if applicable
- Grade
- Coating mass
- Surface treatment
- Delivery location
- Required delivery date
Our sales team can then recommend the available specification and quotation.
How to Order Aluzinc Coils from SRK Steel
To receive a quotation for Aluzinc coils or sheets, send SRK Steel the following information:
- Product: Aluzinc Coil / Sheet
- Thickness: e.g. 0.50 mm
- Width: e.g. 1250 mm
- Quantity: MT / KG / coils
- Grade: ASTM / EN / JIS or project specification
- Coating: AZ requirement
- Surface: Regular / Minimized / Suppressed Spangle
- Treatment: Passivated / Oiled / Non-oiled / Other
- Delivery: UAE / GCC destination
- Required documentation: MTC / inspection documents
This information allows our team to provide a more accurate technical and commercial quotation.
Frequently Asked Questions About Aluzinc
What is Aluzinc?
Aluzinc is steel coated with an aluminum-zinc alloy through a continuous hot-dip coating process. It is also commonly referred to as Galvalume steel.
What is the difference between Aluzinc and Galvalume?
In commercial steel terminology, Aluzinc and Galvalume are commonly used to describe aluminum-zinc coated steel products. Galvalume is also a well-known commercial name associated with 55% aluminum-zinc coated steel.
What is ASTM A792?
ASTM A792/A792M is the ASTM specification for steel sheet coated with a 55% aluminum-zinc alloy by the hot-dip process. The current ASTM listing is A792/A792M-25a.
Is Aluzinc suitable for roofing?
Yes. Aluzinc is widely used for roofing and building-envelope applications because the aluminum-zinc coating provides corrosion and heat-resistance characteristics appropriate to many roofing applications.
What is AZ100 Aluzinc?
AZ100 generally refers to an aluminum-zinc coating mass designation of 100 g/m² total coating mass, subject to the applicable standard and test method.
What is AZ150?
AZ150 generally indicates a total aluminum-zinc coating mass of 150 g/m², subject to the applicable standard.
Can SRK Steel supply Aluzinc coils in Dubai?
Yes. SRK Steel supplies Aluzinc coils and sheets for UAE customers, including requirements for Dubai and other Emirates, subject to stock, source availability, processing capability and the agreed specification.
Can Aluzinc be supplied to Saudi Arabia and other GCC countries?
Yes. SRK Steel can support GCC requirements for Aluzinc coils and sheets, including Saudi Arabia, Qatar, Oman, Kuwait and Bahrain, subject to commercial and logistics arrangements.
Can Aluzinc coils be slit?
Yes. Slitting can be provided according to the required width, coil weight and available processing capability.
Can Aluzinc be cut into sheets?
Yes. Cut-to-length Aluzinc sheets can be supplied according to the required dimensions and applicable processing limitations.
What information is required to quote Aluzinc coils?
The most important information is thickness, width, quantity, grade, coating mass, surface treatment, coil/sheet requirement and delivery location.
Does SRK Steel provide MTC for Aluzinc?
Material documentation can be provided according to the agreed order and customer/project requirements. MTC requirements should be confirmed at the quotation or order stage.
Request an Aluzinc Coil & Sheet Quotation
Looking for Aluzinc coils, Galvalume steel coils or Aluzinc sheets in UAE or GCC?
Contact SRK Steel for technical specifications, availability, bulk quantities and project requirements.
SRK Steel – Aluzinc Coil & Sheet Supplier in UAE
📞 +971 58 660 0183
Serving: Dubai | Abu Dhabi | Sharjah | UAE | Saudi Arabia | Qatar | Oman | Kuwait | Bahrain | GCC
Ask our team for:
- Aluzinc coil quotation
- Aluzinc sheet quotation
- ASTM A792 material
- EN grade Aluzinc
- JIS grade Aluzinc
- AZ coating requirements
- Cut-to-length sheets
- Slit coils
- Bulk/project supply
- MTC and technical documentation
ASTM A792/A792M – 55% Aluminum-Zinc Alloy-Coated Steel
ASTM A792/A792M is the ASTM International specification for steel sheet coated with 55% aluminum-zinc alloy by the hot-dip process. The standard covers continuously hot-dip coated steel sheet supplied in coils and cut lengths for applications requiring corrosion resistance, heat resistance, or a combination of both.
ASTM A792/A792M is widely referenced for Aluzinc, Galvalume and 55% aluminum-zinc coated steel coils and sheets used in roofing, wall cladding, pre-engineered buildings (PEB), sandwich panels, HVAC applications and general industrial fabrication.
The current ASTM listing is ASTM A792/A792M-25a. Earlier editions, including ASTM A792/A792M-10 (2015), may still appear in older project specifications and technical documents. For new projects, the applicable edition should be confirmed against the customer's purchase specification and project requirements.
ASTM A792/A792M Aluzinc Steel at a Glance
| Parameter | Description |
|---|---|
| Standard | ASTM A792/A792M |
| Product | Steel Sheet, 55% Aluminum-Zinc Alloy-Coated |
| Coating Process | Hot-Dip Process |
| Common Commercial Names | Aluzinc / Galvalume / 55% Al-Zn Coated Steel |
| Product Form | Coils and Cut-to-Length Sheets |
| Applications | Roofing, Cladding, PEB, Sandwich Panels, HVAC & Industrial Fabrication |
| Quality Categories | Commercial, Forming, Drawing, High-Temperature & Structural applications |
| Current ASTM Edition | ASTM A792/A792M-25a (edition referenced in this document) |
| Previous Edition | ASTM A792/A792M-10 (2015) – earlier edition |
What Does ASTM A792/A792M Mean?
ASTM A792/A792M specifies requirements for 55% aluminum-zinc alloy-coated steel sheet manufactured using a continuous hot-dip coating process.
The aluminum-zinc coating provides a metallic protective layer over the steel substrate. Depending on the specified grade and application, Aluzinc steel can provide a combination of corrosion resistance, heat resistance, formability and structural performance.
The standard is therefore commonly specified for coated steel products used in construction and industrial applications.
Aluzinc Steel According to ASTM A792/A792M
SRK Steel can supply Aluzinc steel coils and sheets according to the applicable ASTM specification and customer requirements, subject to grade, thickness, width, coating and availability.
Typical requirements can include:
- Steel grade
- Thickness
- Width
- Coating mass
- Coil weight
- Mechanical properties
- Chemical composition
- Surface finish
- Surface treatment
- Cut-to-length dimensions
- Packaging requirements
- Material Test Certificate (MTC)
For project-specific requirements, customers should clearly state the required ASTM edition, grade, coating designation and dimensional requirements in the purchase specification.
ASTM A792 Aluzinc Applications
ASTM A792/A792M Aluzinc steel is commonly used for:
- Roofing sheets
- Roofing coils
- Wall cladding
- Pre-engineered buildings
- Sandwich panels
- HVAC ducting
- Industrial buildings
- Agricultural buildings
- Roll-formed profiles
- General fabrication
- Industrial equipment and components
SRK Steel – ASTM A792 Aluzinc Supplier in UAE
SRK Steel supplies Aluzinc coils and sheets in the UAE and GCC, supporting roofing manufacturers, PEB companies, sandwich panel manufacturers, fabricators, contractors, distributors and industrial customers.
For quotations, customers can provide the required thickness, width, grade, coating mass, quantity and delivery location.
Contact SRK Steel for ASTM A792/A792M Aluzinc coils and sheets in Dubai, Abu Dhabi, Sharjah and across the GCC.
CHEMICAL COMPOSITION
| Classification | Type | Chemical Composition (mass %, maximum unless otherwise stated) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Classification | Type | C | Mn | P | S | Al | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
| ASTM A792/A792M | CS type A | 0.10 | 0.60 | 0.030 | 0.035 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | CS type B | 0.02 -0.15 | 0.60 | 0.030 | 0.035 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | CS type C | 0.08 | 0.60 | 0.100 | 0.035 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | FS | 0.02-0.10 | 0.50 | 0.020 | 0.030 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | DS | 0.06 | 0.50 | 0.020 | 0.025 | 0.01 min | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | HTS | 0.02 -0.15 | 0.60 | 0.040 min | 0.035 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 230/Gr A/ Gr 33 | 0.20 | 1.15 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | |||
| ASTM A792/A792M | SS-gr 255/Gr B/ Gr 37 | 0.20 | 1.15 | 0.10 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 275/Gr C/ Gr 40 | 0.25 | 1.15 | 0.10 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 340 C1/Gr D/ Gr 50 | 0.25 | 1.15 | 0.20 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 340 C2/Gr E/ Gr 50 | 0.25 | 1.15 | 0.20 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 340 C4/Gr F/ Gr 50 | 0.25 | 1.15 | 0.20 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.025 | – | ||
| ASTM A792/A792M | SS-gr 550/Gr E/ Gr 80 | 0.20 | 1.15 | 0.04 | – | 0.20 | 0.15 | 0.06 | 0.008 | 0.015 | 0.025 | – | ||
TYPICAL RANGES OF MECHANICAL PROPERTIES
| Classification | Type | Yield Strength (MPa) (MPa) | Tensile Strength (MPa) | Elongation in 50 mm Min. (%) 2 in. (50 mm)min, % |
|---|---|---|---|---|
| ASTM A792/A792M | CS TYPE A | 205/410 | – | ≥20 |
| ASTM A792/A792M | CS TYPE B | 245/410 | – | ≥20 |
| ASTM A792/A792M | CS TYPE C | 205/450 | – | ≥15 |
| ASTM A792/A792M | FS | 170/275 | – | ≥24 |
| ASTM A792/A792M | DS | 140/240 | – | ≥30 |
| ASTM A792/A792M | HTS | 205/450 | – | ≥15 |
| ASTM A792/A792M | ss-gr 230/Gr A/ Gr 33 | 230min | 310min | 20 |
| ASTM A792/A792M | ss-gr 255/Gr B/ Gr 37 | 255min | 360min | 18 |
| ASTM A792/A792M | ss-gr 275/Gr C/ Gr 40 | 275min | 280min | 16 |
| ASTM A792/A792M | ss-gr 340 C1/Gr D/ Gr 50 | 340min | 450min | 12 |
| ASTM A792/A792M | ss-gr 340 C2/Gr E/ Gr 50 | 340min | – | 12 |
| ASTM A792/A792M | ss-gr 340 C4/Gr F/ Gr 50 | 340min | 410min | 12 |
| ASTM A792/A792M | ss-gr 550/Gr E | 550min | 570min | – |
EN 10346:2015 – Aluzinc Steel Coils & Sheets
EN 10346:2015 is the European standard for continuously hot-dip coated steel flat products, including Aluzinc (AZ) steel coils and sheets with an aluminium-zinc alloy coating.
SRK Steel supplies Aluzinc coils and sheets according to applicable EN 10346 requirements, including grades such as DX51D, DX52D, DX53D, S220GD, S250GD, S280GD, S320GD, S350GD and S550GD, subject to customer specifications.
Aluzinc steel is widely used for roofing, wall cladding, PEB structures, sandwich panels, HVAC systems and industrial fabrication across the UAE and GCC.
For quotations, specify grade, thickness, width, AZ coating, quantity and delivery location.
SRK Steel – Aluzinc Coil & Sheet Supplier in UAE & GCC.
CHEMICAL COMPOSITION
| Classification | Type | Chemical Composition (mass %, maximum unless otherwise stated) | |||||
|---|---|---|---|---|---|---|---|
| Classification | Type | C (max) | Si (max) | Mn (max) | P (max) | S (max) | Ti (max) |
| EN 10346 | DX51D | 0.18 | 0.50 | 1.20 | 0.12 | 0.045 | 0.30 |
| EN 10346 | DX52D | 0.12 | 0.50 | 0.60 | 0.10 | 0.045 | 0.30 |
| EN 10346 | DX53D | 0.12 | 0.50 | 0.60 | 0.10 | 0.045 | 0.30 |
| EN 10346 | S220GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
| EN 10346 | S250GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
| EN 10346 | S280GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
| EN 10346 | S320GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
| EN 10346 | S350GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
| EN 10346 | S550GD | 0.20 | 0.60 | 1.70 | 0.10 | 0.045 | – |
TYPICAL RANGES OF MECHANICAL PROPERTIES
| Classification | Type | Yield Strength (MPa) STRENGTH (MPa) | Tensile Strength (MPa) strength (MPa) | Elongation Min. (%) |
|---|---|---|---|---|
| Classification | Type | Yield Strength (MPa) STRENGTH (MPa) | Tensile Strength (MPa) strength (MPa) | Thickness / Elongation Requirement |
| EN 10346 | DX51D | – | 270-500 | 22 |
| EN 10346 | DX52D | 140-300 | 270-420 | 26 |
| EN 10346 | DX53D | 140-260 | 270-380 | 30 |
| EN 10346 | S220GD | 220min | 300min | 20 |
| EN 10346 | S250GD | 250min | 330min | 19 |
| EN 10346 | S280GD | 280min | 360min | 18 |
| EN 10346 | S320GD | 320min | 390min | 17 |
| EN 10346 | S350GD | 350min | 420min | 16 |
| EN 10346 | S550GD | 550min | 560min | – |
JIS G 3321:2022 – Aluzinc Steel Coils & Sheets
JIS G 3321:2022 is the Japanese Industrial Standard for hot-dip 55% aluminium-zinc alloy-coated steel sheet and strip, commonly known as Aluzinc or Galvalume steel.
SRK Steel supplies Aluzinc steel coils and sheets in UAE and GCC according to applicable JIS G 3321:2022 requirements, with options for different steel grades, thicknesses, widths, coating specifications and surface finishes.
Aluzinc steel is widely used for roofing sheets, wall cladding, sandwich panels, PEB structures, HVAC applications, industrial buildings and general fabrication.
SRK Steel – Aluzinc / Galvalume Steel Coil & Sheet Supplier in Dubai, UAE & GCC.
CHEMICAL COMPOSITION
| Classification | Type | Chemical Composition (mass %, maximum unless otherwise stated) | |||
|---|---|---|---|---|---|
| Classification | Type | C (max) | Mn (max) | P (max) | S (max) |
| JIS G 3321 | SGLCC | 0.15 | 0.80 | 0.05 | |
| JIS G 3321 | SGLCD | 0.10 | 0.45 | 0.03 | |
| JIS G 3321 | SGLC400 | 0.25 | 1.70 | 0.20 | 0.05 |
| JIS G 3321 | SGLC440 | 0.25 | 2.00 | 0.20 | 0.05 |
TYPICAL RANGES OF MECHANICAL PROPERTIES
| Classification | Type | Yield Strength Minimum (MPa) STRENGTH Minimum(MPa) | Tensile Strength Minimum (MPa) STRENGTH Minimum(MPa) | Elongation Min. (%) | ||||
|---|---|---|---|---|---|---|---|---|
| Classification | Type | Yield Strength Minimum (MPa) STRENGTH Minimum(MPa) | Tensile Strength Minimum (MPa) STRENGTH Minimum(MPa) | Thickness Range | ||||
| Classification | Type | Yield Strength Minimum (MPa) STRENGTH Minimum(MPa) | Tensile Strength Minimum (MPa) STRENGTH Minimum(MPa) | 0.25 to 0.40 mm | 0.40 to 0.60 mm | 0.6 to 1.00 mm | 1.00 to 1.60 mm | 1.60 to 2.00 mm |
| JIS G 3321 | SGLCC | 205 | 270 | 20 | 21 | 24 | 25 | |
| JIS G 3321 | SGLCD | – | 270 | 25 | 27 | 31 | 32 | 33 |
| JIS G 3321 | SGLC400 | 295 | 400 | 16 | 17 | 18 | ||
| JIS G 3321 | SGLC440 | 335 | 440 | 14 | 15 | 16 | 18 | |
| JIS G 3321 | SGLC490 | 365 | 490 | 12 | 13 | 14 | 16 | |
| JIS G 3321 | SGLC570 | 560 | 570 | – | ||||
